Portable X-ray Unit

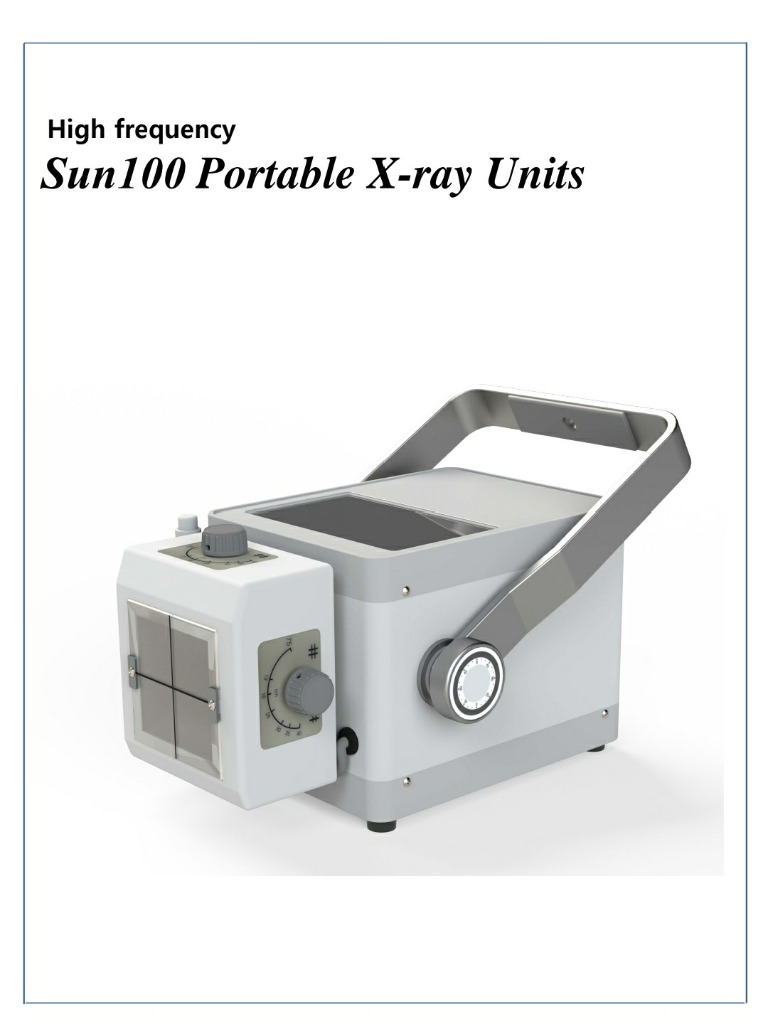

High frequency Portable X-ray Units

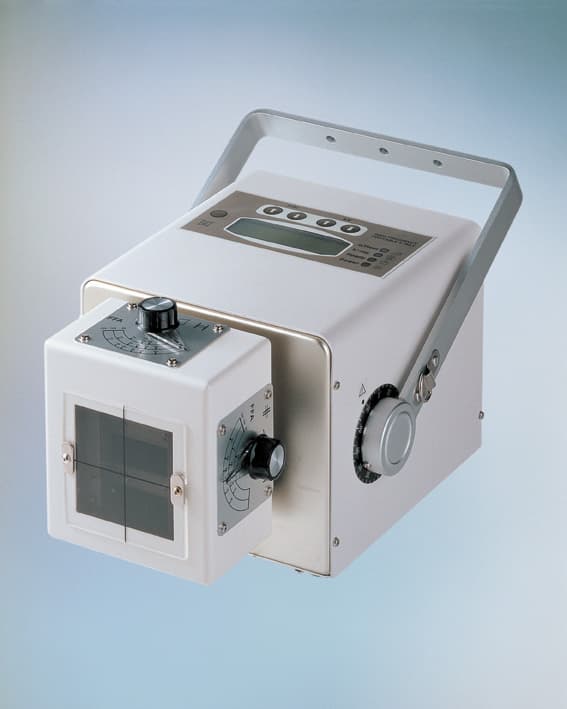

High Frequency Portable X-ray Unit

Compact, powerful, and reliable diagnostic imaging

  • Safety First: Safety was the top priority in design.
  • Compact Portable Design: Lightweight and portable for versatile use.
  • User Friendly: 7" touch panel LCD controlled by light touch.
  • Powerful & Stable Output: Stable and powerful output for clear images.
  • DR Ready: Easy access to DR systems.
  • Versatile: Most popular range that covers all clinical needs.

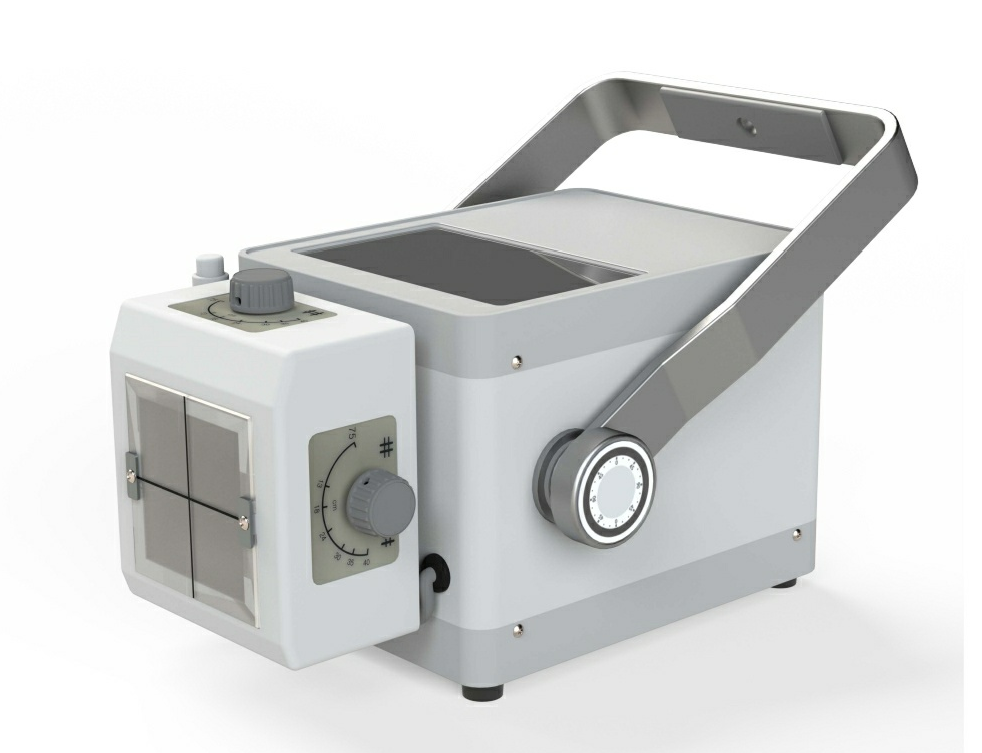

High Frequency Portable X-ray Unit

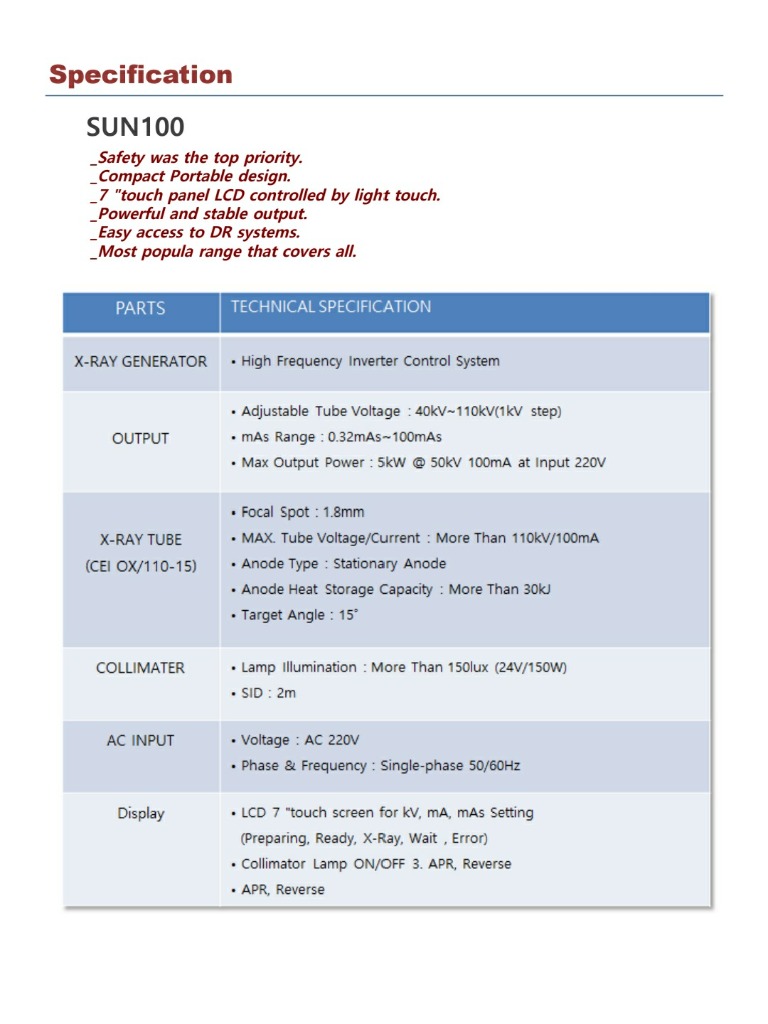

Technical Specification

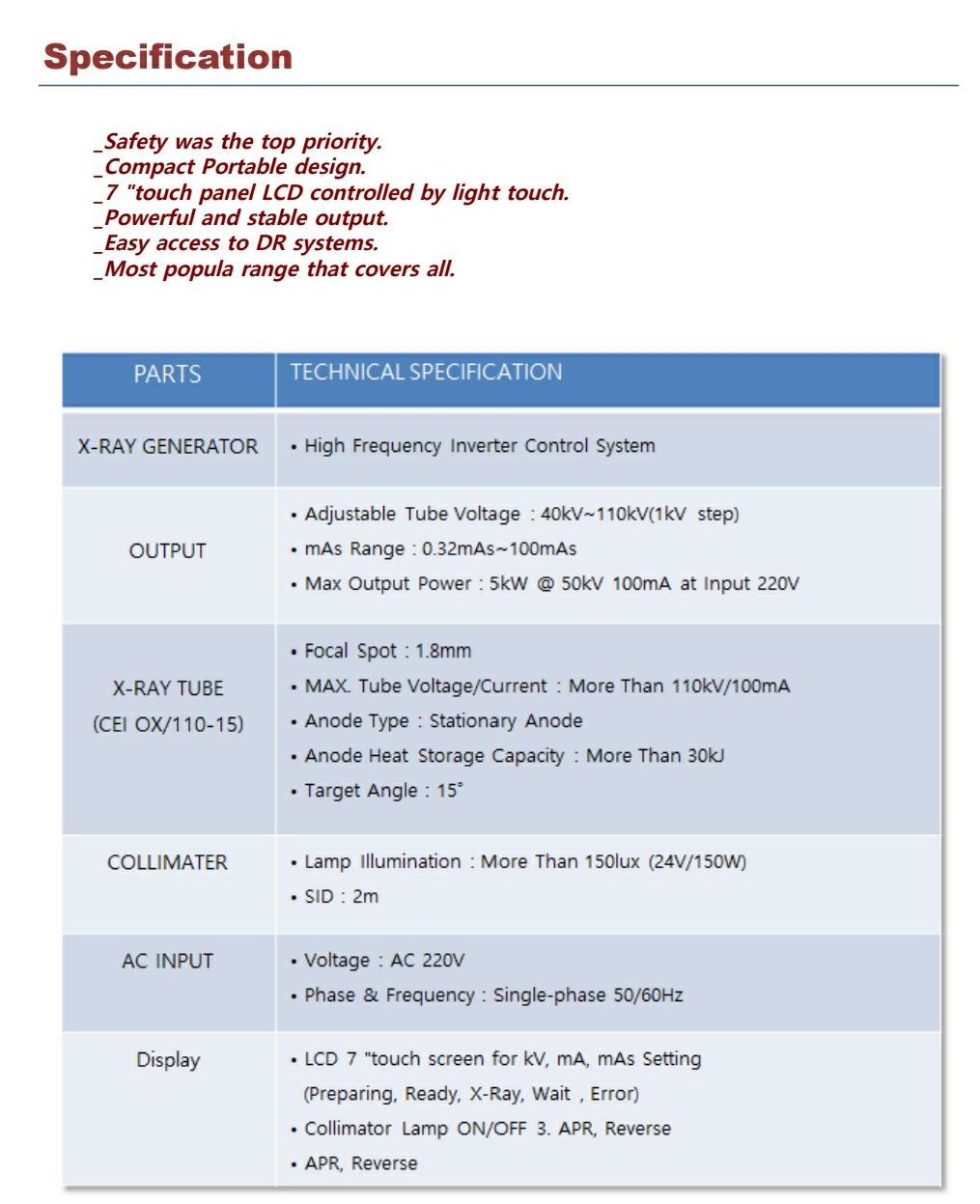

Portable X-ray Specification
PARTS TECHNICAL SPECIFICATION
X-RAY GENERATOR High Frequency Inverter Control System
OUTPUT Adjustable Tube Voltage : 40kV ~ 110kV (1kV step)
mAs Range : 0.32mAs ~ 100mAs
Max Output Power : 5kW @ 50kV 100mA at Input 220V
X-RAY TUBE
(CEI OX/110-15)		 Focal Spot : 1.8mm
MAX. Tube Voltage/Current : More Than 110kV / 100mA
Anode Type : Stationary Anode
Anode Heat Storage Capacity : More Than 30kJ
Target Angle : 15°
COLLIMATER Lamp Illumination : More Than 150lux (24V/150W)
SID : 2m
AC INPUT Voltage : AC 220V
Phase & Frequency : Single-phase 50/60Hz
Display LCD 7" touch screen for kV, mA, mAs Setting
(Preparing, Ready, X-Ray, Wait, Error)
Collimator Lamp ON/OFF, APR, Reverse
APR, Reverse
