X-ray Handheld Portable Unit

Powerful & Smart Portable X-ray Unit

Powerful & Smart Portable X-ray Unit

  • Clear Images: Built with a high-performance 0.8 mm focal spot to provide exceptionally sharp and high-resolution diagnostic images.
  • Perfect Portability: Highly lightweight main body (only 4.5 kg including the battery pack) designed for perfect clinic and field transport.
  • Amazing Performance: Capable of generating tube voltage up to 80 kV and current up to 5 mA for robust medical and clinical diagnostics.
  • Exceptional Battery Power: Rechargeable Li-Ion battery pack delivers more than 150 exposures on a single full charge (tested at 70 kV, 5 mA, 0.1 sec).
  • Simultaneous Operation: Highly smart power management allows you to take X-ray shots even while the battery is charging.
  • Clear Collimator Beam: Sharp collimator light beam projection (SID 100cm / 43cm x 43cm) for exact diagnostic target alignment.
  • Laser SID Measurement: Integrated precise laser measurement system for instant and effortless Source-to-Image Distance assessment.

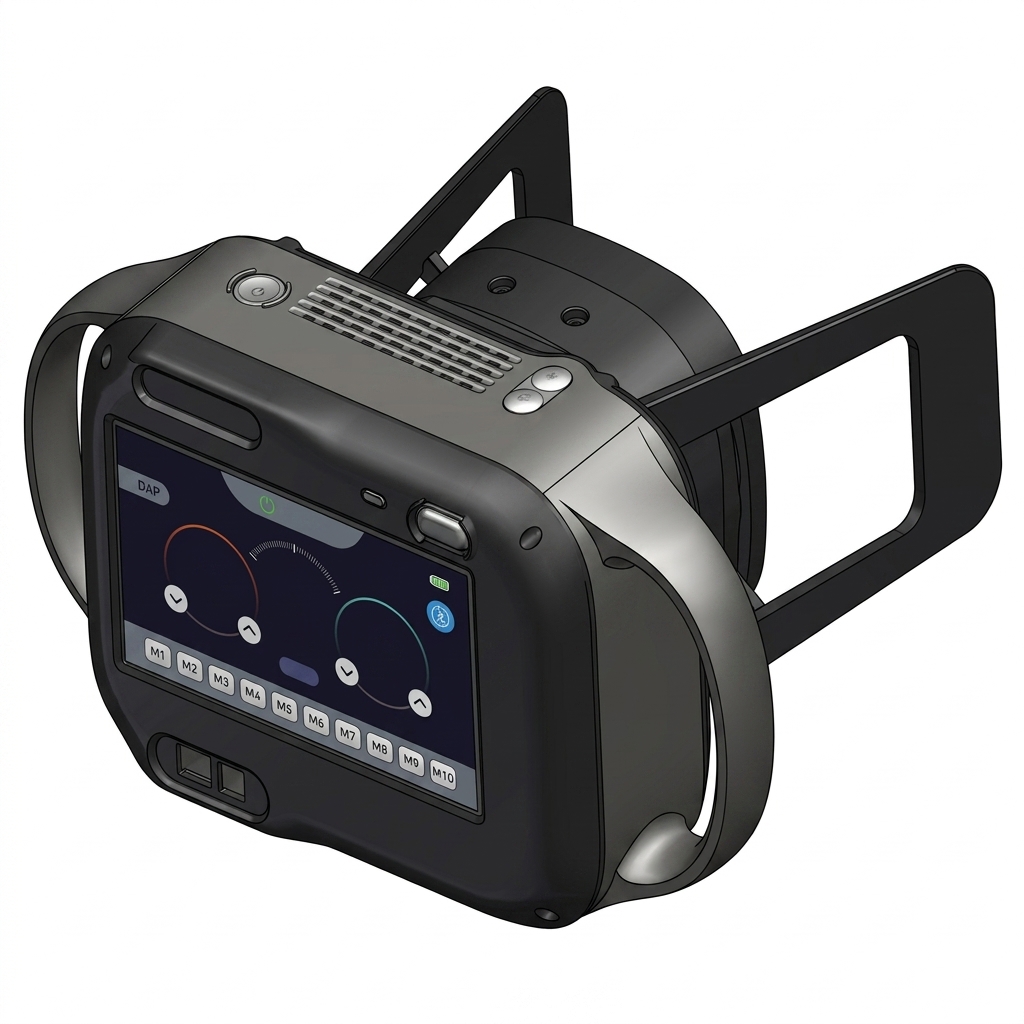

LT-805 Portable X-ray Unit

Technical Specification

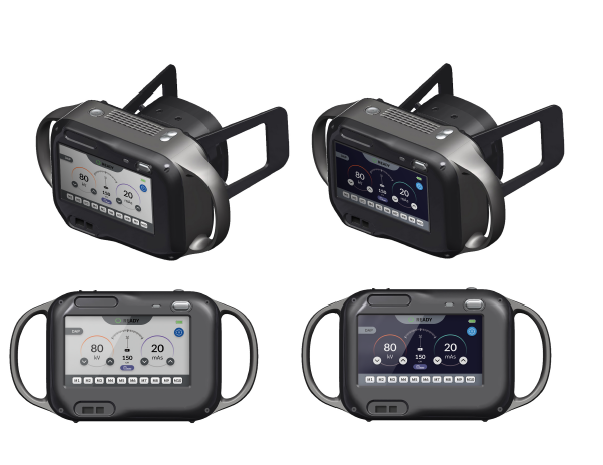

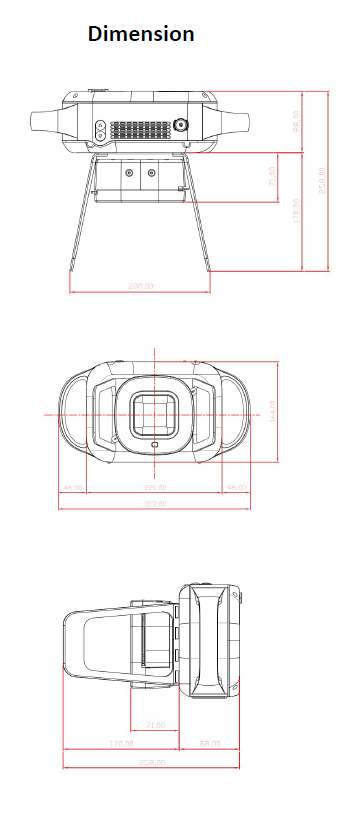

LT-805 Screen UI Options LT-805 Dimension Drawings
X-RAY GENERATOR
Type MEDICAL
Power Output 450 W
X-RAY PERFORMANCE
Tube Voltage 40 ~ 80 kV (1 kV step)
Tube Current 2 ~ 5 mA (1 mA step)
X-RAY CONTROL
Exposure Time (mAs Set) 0.32 ~ 20 mAs (19 selections from 0.32 to 20 mAs)
COLLIMATOR
SID SID 100cm / 43cm x 43cm
X-RAY TUBE
Anode Type Stationary
Anode Angle 16 Degrees
Focal Spot 0.8 mm
Anode Heat Capacity 8000 J
Max. Anode Cooling Rate 110 W
Nominal Anode Input Power 1280 W at 0.1 s (DC)
POWER REQUIREMENT
Battery Li-Ion (22.2 VDC, 2200 mAh)
Number of Exposures More than 150 times at 70 kV, 5 mA, 0.1 sec
AC Power Adapter AC 100 ~ 240 V, 50/60 Hz
Charging Time of Battery About 1.5 ~ 2.0 hours
PHYSICAL CHARACTERISTICS
Weight (Main Body) 4.5 kg
Dimension (Main Body) 266 x 260 x 163 mm
